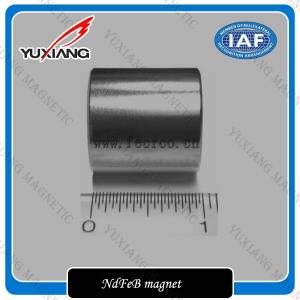

Zinc Zn Coating N52 ARC 1 Inch Neo Neodymium earth magnets For Motor
General Description:
N35,N38,N40,N42,N45,N48,N50,N52 working temperature:80 deg.
N33M,N35M,N38M,N40M,N42M,N45M,N50M working temperature:100 deg.
N30H,N33H,N35H,N38H,N40H,N42H,N45H,N48H working temperature:120 deg.
N30SH,N33SH,N35SH,N38SH,N40SH,N42SH,N45SH working temperature:150 deg.
N28UH,N30UH,N35UH,N38UH,N40UH working temperature:180 deg.
N38EH,N30EH,N35EH,N38EH working temperature:200 deg.
Available coatings for NdFeB Magnet :
| Available Coatings: |
| Su rface |
Coating |
Thickness (Microns) |
Color |
Resistance |
| Passivation |
|
1 |
Silver Grey |
Temporary Protection |
| Nickel |
Ni+Ni |
10-20 |
Bright Silver |
Excellent against Humidity |
| Ni+Cu+Ni |
| Zinc |
Zn |
8-20 |
Bright Blue |
Good Against Salt Spray |
| C-Zn |
Shinny Color |
Excellent Against Salt Spray |
| Tin |
Ni+Cu+Sn |
15-20 |
Silver |
Superior Against Humidity |
| Gold |
Ni+Cu+Au |
10-20 |
Gold |
Superior Against Humidity |
| Copper |
Ni+Cu |
10-20 |
Gold |
Temporary Protection |
| Epoxy |
Epoxy |
15-25 |
Black, Red, Grey |
Excellent Against Humidity
& Salt Spray |
| Ni+Cu+Epoxy |
| Zn+Epoxy |
| Chemical |
Ni |
10-20 |
Silver Grey |
Excellent Against Humidity |
| Parylene |
Parylene |
5-20 |
Grey |
Excellent Against Humidity, Salt Spray. Superior Against Solvents, Gases, Fungi and Bacteria.
FDA Approved. |
We have accumulated abundant experience and established stable and credible business relationships with customers worldwide. With rich experience in dealing with all types of large and small orders, we have developed extensive contacts with many local and international freight organizations. Consequently, we are able to ship our goods safely and reliably to almost anywhere in the world.
About our company business scopes:
We supply hard magnets and magnetic materials from China. Our magnets include ferrite magnets, flexible magnets, NdFeB magnets, alnico magnets, SmCo magnets, rubber magnets, refrigerator fridge magnets, magnetic powder, magnetic compound tesla meters & magnetizers, and magnetic jewelry. We also supply ferrite cores, MnZn cores and NiZn cores for transformers and coils, loudspeaker magnets, motor magnets, and refrigerator gasket stripes.
Product Tags:
|
|
Zinc Zn Coating N52 ARC 1 Inch Neo Neodymium Earth Magnets For Motor Images
|
